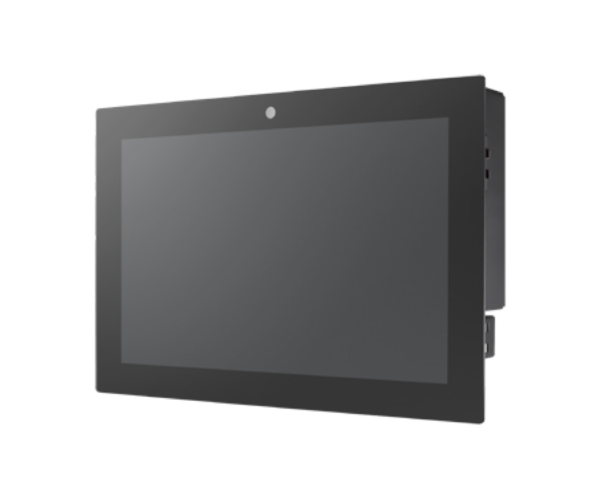

UTC-510

The compact 10 “touch screen terminal for many applications

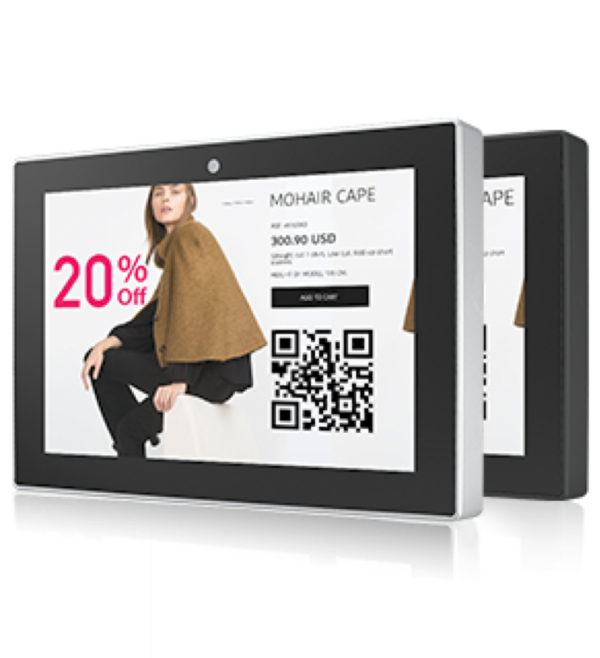

The Advantech UTC-510 features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

UTC-510 can be used as a stand-alone computer with integrated touch or as a panel mounted one. Its variety of peripherals which can be connected with ease makes the UTC-510 to a price-checker for example. Another application where the UTC-510 fits best for is the interactive door plate where room bookings can be done and shown. You see: The compact UTC-510 suits perfectly to your ideas.



Download

Features

  • IP protection: IP65 (front)
  • Mechanical robust touch screen
  • Fanless design
  • Aluminum colored frame
  • Removable frame (for panel mount)
  • Standard VESA mounting 75 mm
  • In portrait and landscape mode usable
  • Camera module
  • Magnet strip reader
  • RFID reader
  • 1D Barcode reader
  • 2D Barcode reader

Specifications

CPU Intel® Atom® E3825 (UTC-510D)
Base Frequency 1.33 GHz (Dual-Core)
Cache L2 Cache 1MB
Memory 1 x SO-DIMM DDR3L / 1066 MHz up to 8 GB
HDD 1 x 2.5 internal SATA HDD bay
Network (LAN) 1 x Gigabit Ethernet ports (Supports Wake on LAN)

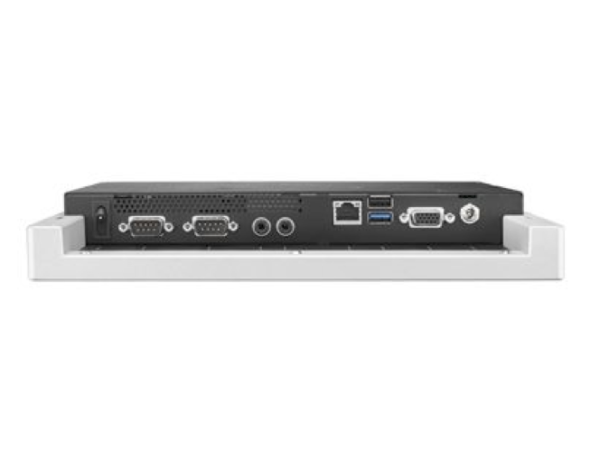

I/O ports 2 x RS-232 COM (COM1 RS-422/485 supported)*

1 x USB 2.0 / 1 x USB 3.0 / 2 x USB 2.0 (optional)*

1 x Gigabit Ethernet (RJ-45)

1 x VGA

Audio Line-out x 1, Mic-in x 1

Stereo Speaker 2 W x 1
Bus expansion 1 Half size MiniPCIe/1 Half size mSATA
Mounting VESA 75 x 75 mm
Dimensions (W x H x D) 265.40 x 182.40 x 39.55 mm
Weight 1.80 kg (3.97 lbs)
OS Support WES7P 32/64bit

WES7E 32bit

Windows Pro Embedded 7 Pro 32/64bit

WE8S 32bit

Windows Embedded 8.1 Industry Pro 64bit

Win 10 IoT Enterprise 64bit

Linux Ubuntu 16.04

Android 4.4

Front Panel Protection IP 65 Compliant
Operating Temperature 0 ~ 40° C (32 ~ 104° F)
Relative Humidity 10 ~ 95% @ 40° C non-condensing
Vibration 1Grms
Shock 5G peak acceleration (11 msec. duration)
Certification CE, FCC, CB, UL, CCC, BSMI
Input Rating 12 V/3 A (36W ITE Adapter)
Power consumption Typical 10W / Max. 20W
LCD Display|Size/Type 10.1″ TFT LCD with LED backlight
LCD Display |Max.Resolution 1280 x 800
LCD Display | Max. Color 16.7M
LCD Display | Pixel Pitch (um) 169.5 x 169.5
LCD Display | Brightness (cd/m2 ) 350
LCD Display | View Angle 170 / 170
LCD Display | Camera 5 Mega Pixel (Optional)
Touch Screen Option (PE/GE)| Type Projected Capacitive. Glass Panel
Light Transmission 80% ± 5% / 90%
Controller USB Interface / –
