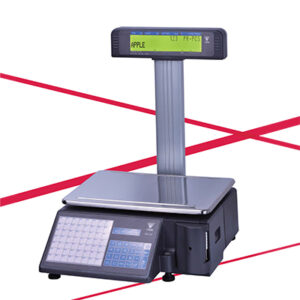

SM320

Scale Printer



Download

Features

– Quick weight stabilization and fast printing
– Reliable printing mechanism
– Back-light LCD Display
– Connects to a barcode scanner and cash drawer

Specifications

Model SM-320B SM-320P
Dimensions (mm) 386 x 406 x 159 386 x 484 x 452
Number of preset keys 32 keys 56 keys
Capacity Single interval 3kg/1kg  6kg/2g  12kg/2g  15kg/5g  30kg/10g
Multi interval 3/6kg:1/2g  6/15kg:2/5g  15/30kg:5/10g
Memory 2M (PLU number 8300), 4M (PLU number 1800) or 8MP

(PLU number 38000)

Display resolution 1/3,000
Display 202 x 32 pixels FSTN type LCD with back-light

Tare Weight display: 4 digits

Weight display: 5 digits

Unit Price display: 6 digits

Total Price display: 7 digits

Second line display: 25 characters

Printing Max. printing width: 56mm

Paper width : 58mm (receipt) / 56mm (label)

Printing speed: Max 105mm/sec

Life span: 100 million pulses, 100km or more

Resolution: 448 dots (8 dot/mm)

Power source AC 176V ~ 264V, 47 ~ 63 Hz
Operating temperature -10 oC ~ 40 oC
Operating humidity 15% ~ 85%RH
Interface AC receptacle

Rs232C, Cash drawer, ETHERNET
