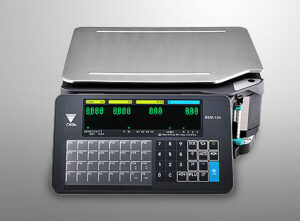

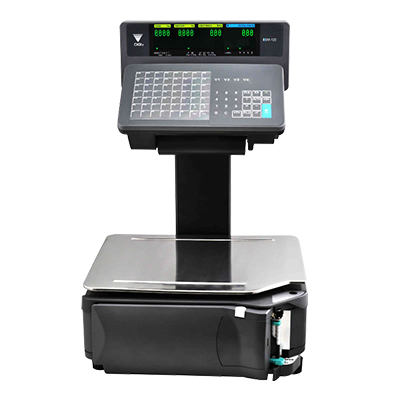

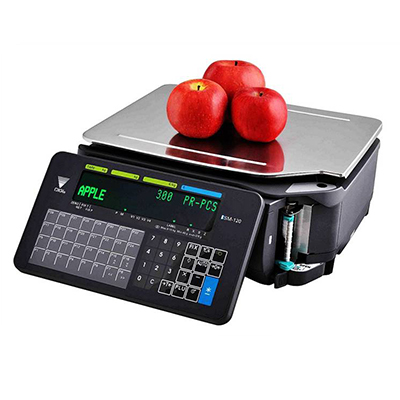

SM120LL

New dimension of an embedded scale



Download

Features

– Linerless Label with Auto Cutter
– Flexible length of label
– Label saving is 21~26% coparing to liner label
– Better waterproof performance
– Life span of thermal head improved
– Label and receipt printing in one printer
– Cloud service

Specifications

Weighing

Capacity Max 6kg Max 12kg Max 12kg
Single Interval 1/ 6,000 e= 1g e= 2g e= 5g
Capacity Max 3/ 6kg Max 6/ 15kg Max 15/ 30kg
Multi Interval 1/3,000 e= 1/ 2g e= 2/ 5g e= 5/ 10g

Display

Operator display FSTN type LCD with backlight 32×202 dots
Customer display FSTN type LCD with backlight  32×202 dots

Operation and general specifications

SM-120LLH SM-120LLB SM-120LLP SM-120LLEV SM-120LLBS
Number of Preset Keys 56 32 56 56 72 120
Memory Capacity 2MB (Expandable up to 8MB)
Standard Interface RS232C, Ethernet, Cash Drawer control port, AC receptacle

Labeling

Label Printing Size Max. 60mmW x 220mmH
Paper Width 60mm for Label   62mm for Receipt
Printing Speed-Label Up To 110mm/s

Options

Max32GB
