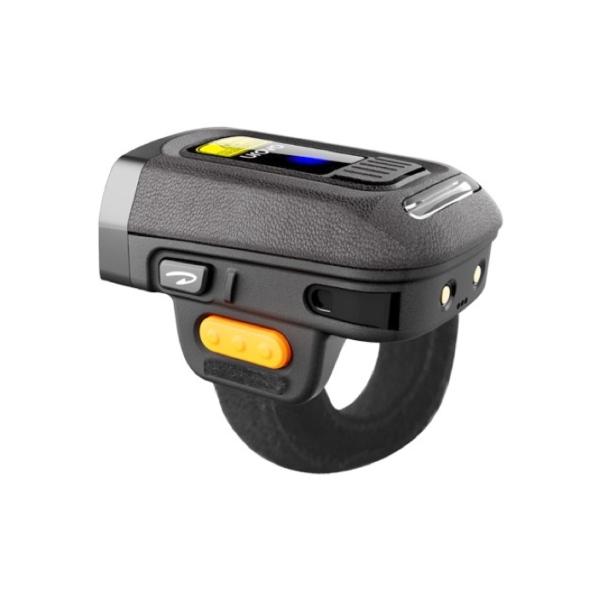

R70 Bluetooth Ring Scanner

R70 CAN WORK WITH PDA PERFECTLY

When you pair you’re wearable or handheld mobile computers with R70 Bluetooth ring scanner, you give your workers the superior technology they need to take productivity to the next level. You get our most rugged ring-style scanner, built to deliver reliable operation in the warehouse and manufacturing plant – inside, on the loading dock or in the freezer.



Download

Features

  • Light and unique ring design
  • Professional and fast 1d/2d scanner
  • Supports Bluetooth 4.0 with 10m operating range and 2.4GHz wireless with 30M operating range
  • 1000 mAh battery capacity, 10 hours 1times/second uninterrupted scanning
  • Supports Android, iOS, Windows operating system

Specifications

Basic Characteristics
Dimensions 66 x 44 x 24 mm
Weight 65 g
Battery 1000mAh
Bluetooth Bluetooth 4.0
Wireless 2.4 GHz receiver
Interface
Remind method LED x 2, Buzzer
Buttons Scan key, Power key, custom key
Trigger Artificial triggering
Charging method Micro USB, PogoPin
Environmental
Operating Temperature -10 °C – 50 °C
Storage Temperature -20 °C – 70 °C
Humidity 5% – 95%RH , Non-condensing
1D
Scan Angine Moto SE965
Scanning Speed 104 times/SEC
Scanning Angle Roll Tolerance ± 35
Pitch Tolerance ± 65
Skew Tolerance ± 40
Print Contrast 25%
Resolution ≥ 0.1mm(4mil)
Barcode Content UPC/EAN, UPC/EAN With supplementals, Bookland EAN, UCC Coupon Extended Code, Code39 Full ASCII, Trioptic Code39, Code32, Code93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar
2D
Scan Angine Moto SE2707 (CMOS)
Optical System Red LED illumination
Red LED dot aimer
Scanning Angle Tilt: 360° ,Pitch: +/-60° ,Skew: +/-60°
Print Contrast 20%
Resolution 640 x 400
Barcode Content Aztec Code, Codabar, Codablock F,Code 11, Code 16K,

Code 128, Code 2 of 5, Code 39,
Code 49, Code 93, Data Matrix, EAN/JAN – 13,

EAN/JAN 8, EAN-UCC Emulation, EAN-UCC Emulation, I ATA Code 2 of 5,

Interleaved 2 of 5, Matrix 2 of 5, MaxiCode,
MicroPDF417, MSI, PDF417, Postal Codes

(Australian Post, British Post, Canadian Post,

China Post, China Post, Korea Post, Netherlands Post,

Planet Code Postnet) Plessey, Code,

PosiCode, QR Code, RSS Expanded, RSS Limited, RSS-14,
TCIF Linked Code 39, Telepen, Trioptic Code UPC-A, UPC E
