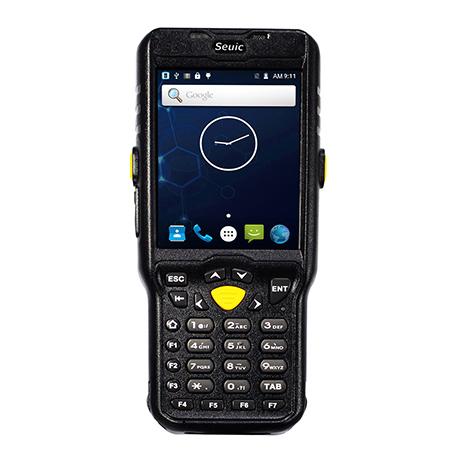

AUTOID 6L-P

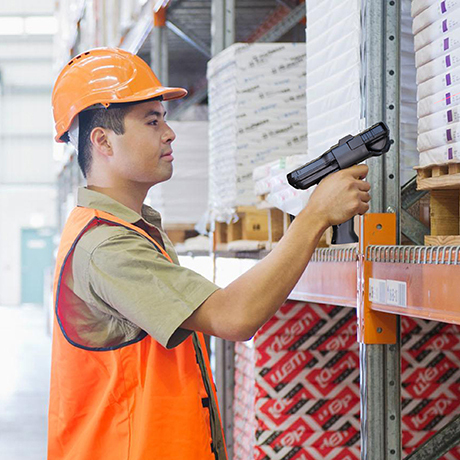

AUTOID 6L-P is an industrial Android handheld terminal, which could be used in warehouse, manufacturing fields. It could scan more than 5000 times barcode per day, ensures the high performance and low failure rate.

Category:

Features

Characteristics and advantages


Excellent scanning experience:

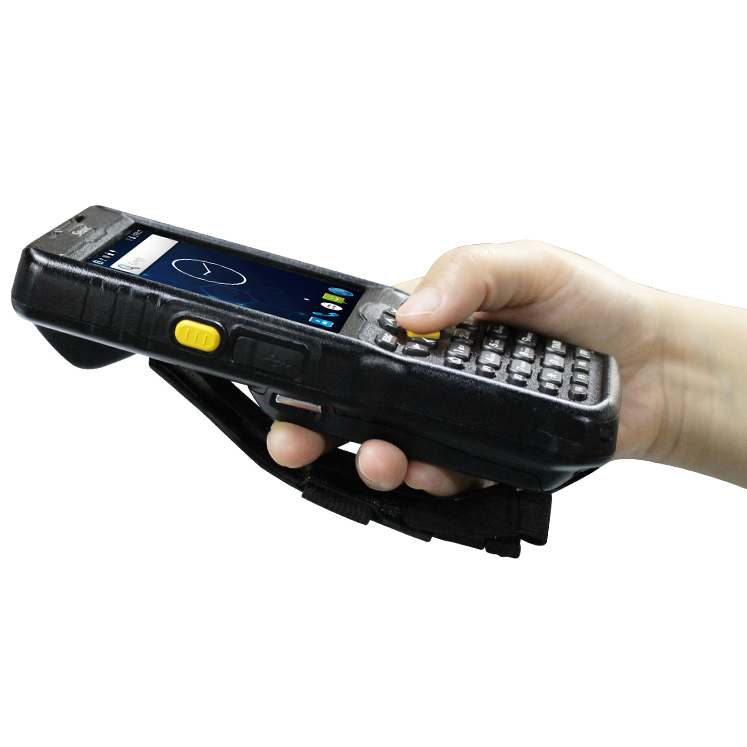

Ergonomic design, comfortable grip, small and light, only 313g, which meets the requirements of portable applications.



Support various barcode scan:
AUTOID6L(P) supports professional scanengine, optional SE955-100, EM1350 1D laser scanning engine and N56002D laser scan engine, which could accurately and quickly capturedata.



Support Mobile 4G industrial handheld terminals:
Both urban and rural all can be normal communication.



Android 4.3 OS, morepower saving and run faster:
Android OS adopts the industry recognized and mostpower saving CPU, lower power consumption, longer service time.



Externally contactmulti-bluetooth devices:
AUTOID6L(P) can realize to externally contactmulti-bluetooth devices at the same time, like Bluetooth headset, Bluetoothprinter, Bluetooth POS and so on.



To solve the problemof Android OS roaming thoroughly:
AUTOID6L(P) with Wi-Fi and fast transmission rate, which could switch with high sensitivity response, seamless roaming,Multiple AP.



Excellent scanning experience:
Inclined 45° scan angle design result in greatlyconvenient for customers to see the screen clearly when scan at the same time,avoiding the operating fatigue of repeated turning the wrist.

Specifications

1. NEW AUTOID® 6L (P) PERFORMANCE CHARACTERISTICS

CPU Cortex-A53 Quad core 1.3GHz
Operating System Android 5.1
RAM 2GB
ROM 16GB
Expansion Slot Micro SD Card, 32GB SDHC compatible
Keypad 28keys
LED (buttons with backlight)
Display 3.5 inch size industrial grade low temperature resistant, Capacitive, touchable, dual mode touch-with or without a thick glove / with or without wet hand
640(H)×480(W) (VGA)
Power Detachable 3.7V 3800mAh rechargeable Li-ion battery, Built in 3.7V 100mAh li-ion backup battery
standard Micro USB, intelligent identification of PC and special charger; support Single-Slot Charging Dock
Interface/Communication Support USB2.0 HighSpeed
Support OTG
USB can support serial port
PSAM Card Meet standard of ISO 7816-3
Sensor Acceleration sensor, electronic compass and gyroscope
Notification Sound, Vibrator, LED indicator
Audio Built-in loudspeaker, built-in microphone, built-in receiver
Dimension 169(H)×72(W)×36(T) mm , (width 72mm without side keys)
Weight (including standard battery) 313g (Including battery depends on different configurations)
Operating Temp -20℃ to +50℃
Storage Temp -40 ℃ to + 60 ℃ (Battery included)
-40 ℃ to + 70 ℃ (Battery excluded)
Humidity 5% to 95% RH non-condensing
Sealing IP65
Drop Specification Multiple 5 ft./1.5m drops to concrete across the operating temperature range
Tumble Specification 1,000 1.64 ft./0.5 m tumbles (2,000 drops)
ESD ±15kV Air discharge, ±8kV direct discharge

2. NEW AUTOID® 6L (P) DATA CAPTURE OPTIONS

Option 1 1D Laser Scan Engine (option1)
Scan Accuracy 4mil
Rotate ±35°
Pitch Angle ±65°
Skew Tolerance ±50°
Ambient Light Sunlight: 10,000ft. Candles(107,640Lux)
Artificiallight:450ft.candles(4,844Lux)
Scan Depth 15.2cm(4mil), 64.1cm(55mil)
Scan Frequency 104±12/sec
Scan Width 47°/35°
Laser Safety Grade Class I
Code Support UPC/EAN, POST, Code 128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSSI etc.
Option 2 1D Laser Scan Engine (option2)
Scan Accuracy 5mil
Rotate ±35°
Pitch Angle ±65°
Skew Tolerance ±50°
Ambient Light Immunity Sunlight:10,000ft. Candles(107,640Lux)
Artificiallight: 450ft. Candles(4,844Lux)
Scan Depth 13.5cm(5mil), 91cm(55mil)
Scan Frequency 100±10/sec.
Scan Width 47°
Laser safety grade Class II
Code Support UPC/EAN,POST, Code 128,Code 39, Code 93,Code11,Codabar,Interleaved 2 of 5,Discrete 2 of 5,Chinese 2 of 5,MSI,RSSI etc.
Option 3 1D Laser Scan Engine (option3)
Scan Accuracy 5mil
Rotate ±35°
Pitch Angle ±65°
Skew Tolerance ±50°
Ambient Light Immunity Sunlight: 10,000ft. Candles (107,640Lux)
Artificiallight: 450ft. Candles (4,844Lux)
Scan Depth 17.78cm (5mil),66.04cm (15mil)
Scan Frequency 104±12/sec.
Scan Width 47°/35°/10°
Laser Safety Grade Class I


Code Support

 UPC/EAN, POST, Code 128, Code 39, Code 93,Code 11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSSI etc.
Option 4 2D Image Scan Engine (option1)
Sensor Resolution 844(H)×640(V)
Rotate 360°
Pitch Angle ±45°
Skew Tolerance ±65°
Scan Depth 7cm (5mil), 45cm (20mil)
Scan Frequency 60fps
Code Support Aztec Code, Codabar, Codablock F, Code 11, Code 128, Code 2 of 5,
Code 39, Code 93, Data Matrix, EAN/JAN-13, EAN/JAN 8,
EAN-UCC Composite Codes, EAN-UCC Emulation, IATA Code 2 of 5,
Interleaved 2 of 5, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI,
PDF417,Postal Codes (Australian Post,British Post, Canadian Post,
China Post, Japanese Post, Korea Post, Netherlands Post,
Planet Code,Postnet), Plessey Code, PosiCode, QR Code, RSS Expanded, RSS Limited, RSS-14, TCIF Linked Code 39, Telepen, Trioptic Code, UPC-A, UPC E
Light source system White light, laser aiming
Minimum printing contrast 20%
Option 5 Camera
Maximum Resolution 2592*1944 (taking photo), 720P 15/30fps (taking movie)
Photo Function Auto-focus
Flashlight Support double flashlight
Pixel 5.0 mega-pixel
BSI Can support
Option 6 RFID Read/write(HF)
Standards Support Support ISO15693,ISO14443A/B (without encryption protocol), ISO14443A tag with encryption protocol (Mifare one S50,S70 and compatible with cards); Support NFC protocol
Operating Frequency HF frequency band 13.56MHz
Reading Range Typical values greater than 6cm (ISO15693), Typical values greater than 4cm (ISO14443A) Typical values greater than 1cm (ISO14443B) (Associated with tag)
Option 7 GPS
Positioning System GPS, Beidou, GLONASS (Three in one)
Frequency GPS: L1(1.575GHz); Beidou: B1 (1.561GHz); GLONASS: L1 (1.602GHZ)
Maximum Number Of Channels 31channel
Sensitivity -130dB (SNR value:42dBHz)
Accuracy 5-10m (OPEN SKY)

3. NEW AUTOID® 6L (P) WIRELESS DATA COMMUNICATIONS

Option 1 WLAN WIFI
Protocol IEEE 802.11a/b/g/n/ac (2.4G/5G dual-frequency WIFI)
Frequency Range Depends on different countries (regions), 2.4GHz: 2.4GHz-2.496GHz; 5GHz: 4.9GHz-5.85GHz
Working Channel CH1~CH13, CH34~CH140, CH149~CH165
Security OPEN, WEP, WPA2-PSK (TKIP+AES), TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLS MD5, TTLS-PAP, PEAP-TLS, PEAP(MS-CHAP v2), AES, Etc.
Transmission Distance 2.4G: >150 meters; 5G: >85 meters (Industrial grade AP, Open regions)
Data Rate 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps (20MHz,Long GI,800ns)
802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2Mbps (20MHz,short GI,400ns)
802.11n: 13.5, 27, 40.5, 54, 81, 108, 121.5, 135 (40M,800ns)
802.11n: 15, 30, 45, 60, 90, 120, 135, 150 (40M,400ns)
802.11ac: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65, 78, 86.5 (20M,No SGI)
802.11ac: 7.2, 14.4, 21.6, 28.8, 43.3, 57.7, 65, 72.2, 86.6, 96.1 (20M,SGI)
802.11ac: 13.5, 27, 40.5, 54,81, 108, 121.5, 135, 162, 180 (40M,No SGI)
802.11ac: 15, 30, 45, 60, 90, 120, 135, 150, 180, 200 (40M,SGI)
802.11ac: 29.3, 58.5, 87.8, 117, 175.5, 234, 263.3, 292.5, 351, 390 (80M,No SGI)
802.11ac: 32.5, 65, 97.5, 130, 195, 260, 292.5, 325, 390, 433.3 (80M,SGI)
Antenna Internal single antenna
Option 2 WWAN All Network (7 mode 18 frequency)
Frequency Band GSM: Qual Band (850/900/1800/1900Mhz)
TD-SCDMA: Band34, Band39
WCDMA: Band1, Band2, Band5, Band8
CDMA 1x /EVDO: BC0
TDD-LTE: Band38, Band39, Band40, Band41
FDD-LTE: Band1, Band3, Band7
Communication Rate GPRS: DL / UL171.2kbps; EDGE; DL / UL384 kbps
TD: DL 4.2 Mbps / UL 2.2 Mbps
DC-HSPA+: DL 42Mbps / UL 5.76 Mbps
CDMA1x: DL 153.6kbps/ UL 153.6kbps; EVDO: DL 3.1 Mbps / UL 1.8 Mbps
TDD-LTE: DL 117 Mbps / UL 30 Mbps (CAT4)
FDD-LTE: DL 150 Mbps / UL 50 Mbps (CAT4)
Option 3 WPAN Bluetooth
Standard Bluetooth 4.0 (Dual mode, Support BLE)
Power Class 2
Distance >20 meters (Industrial grade Bluetooth adapter)

4. NEW AUTOID® 6L(P) THE THIRD PARTY APPLICATION DEVELOPMENT SUPPPORT

System Software Android 5.1
System Programming Environment Android IDE (Eclipse)

5. NEW AUTOID® 6L(P) PERIPHERALS AND ACCESSORIES

Standard Accessories Universal Adapter×1, USB Cable×1, Hand Belt×1, battery×1
Optional Accessories Single Slot Battery Charger, Four Slot Battery Charger,Touch pen, Single Slot Charging Dock, Single-Slot Charging Dock (Support Ethernet), 5-Slot Charging Dock, Multifunctional bag, Vehicle charger, OTG cable, Pistol grip, Hand Tether, etc.
