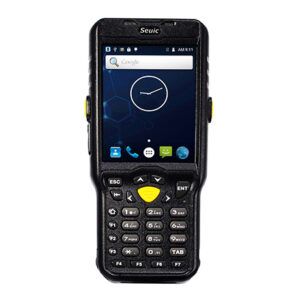

AUTOID 6L-W

AUTOID® 6L-W is designed for high strength inner-field application with Windows CE operation system. It could be operated by single hand in various hard environment, which could scan more than 3000 barcode per day.

Category:

Features

Characteristics and advantages

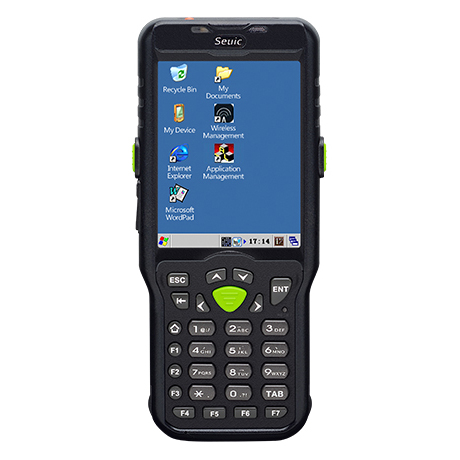

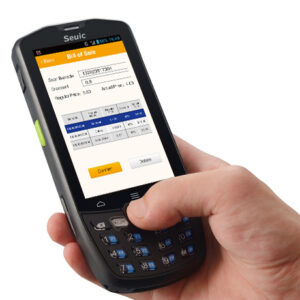

3.5inch industrial screen:
Improve the inner field operation experience, meetusers‘ demand for large-screen CE devices.



Design of big keyboard:
Adopts large key and large clearance design,comfortable pressing, and supports 7 quick keys.



Support various barcode scan:
AUTOID6L-W supports professional scan engine, optional SE955 high class 1D laser scan engine, or SE4500, SE5600 2D image scan engine,accurately and quickly capture data.



Stable operating system, keep the persistent scanning:
AUTOID6L-W supports WinCE6.0 OS, meet the requirements of software running and docking under different plate andframe.



Support Unicom 3G:
Both urban and rural all can be normalcommunication.



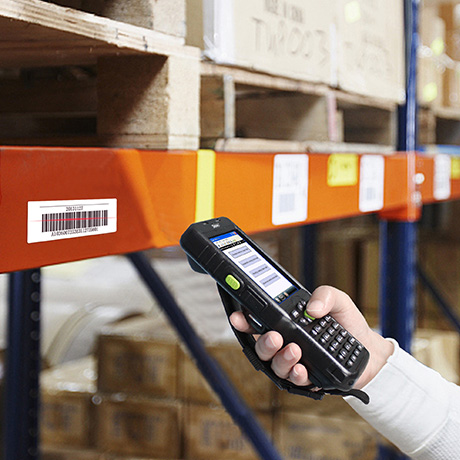

Excellent scanning experience:

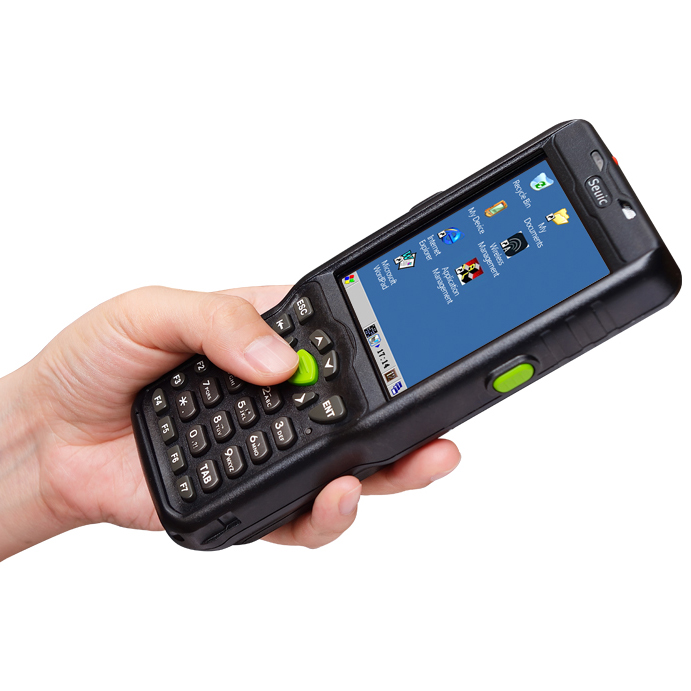

Inclined 45° scan angle design result in greatly convenient for customers to see the screen clearly when scan at the same time,avoiding the operating fatigue of repeated turning the wrist.

Specifications

1.AUTOID® 6L-W PERFORMANCE CHARACTERISTICS

CPU Ti ARM® Cortex™-A8 AM3715/DM3730 1GHz
Operating System Microsoft® Windows® CE 6.0
RAM 512MB
ROM 512MB
User Storage 4GB (Built-in and irremovable)
Storage Expansion Micro SD Card, 32GB SDHC compatible
Interface/Communication Standard Micro USB interface, Support USB2.0 High Speed
Keypad 28keys
LED (buttons with backlight)
Display 3.5” industrial color LCD, resistive touch,320*240
Power Supply Removable 3.7V 3800mAh rechargeable Li-ion battery
Built-in backup battery: non-removable 3.7V/100mAh rechargeable battery
Charging Special 5V voltage charger, 1.5A currentPC USB charging 0.5A currentIntelligently identify PC and special charger to switch 0.5A/1.5A charging current
Notification Sound, Vibrator, LED indicator
Audio Built-in loudspeaker
Dimension 169(H) ×72(W) ×36(T) mm, (width 72mm without side keys)
Weight (including standard battery) 313g (Including battery depends on different configurations)
Operating Temp -20℃ to +50℃
Storage Temp -40℃ to +60℃
Humidity 5% to 95% RH non-condensing
Sealing Grade IP65
Drop Specification Multiple 5 ft./1.5m drops to concrete resistance
ESD ±15kV Air discharge±8kV direct discharge

2.AUTOID® 6L-W DATA CAPTURE OPTIONS

Function 4 2D Image Scan Engine (Option 4)
Field of View Horizontal:41.4 ,Vertical:32.2
Sensor Resolution 838(H) x 640(V) Pixel Wide
Rotate 360°
Pitch Angle ±45°
Skew Tolerance ±65°
VLD 528nm±10nm
LED 617nm±10nm
Ambient Light (Sunlight) 0-100000 Lux
Code Support 1D CODE: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved2 of 5, Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post; 2D Stacked: PDF417, MicroPDF417, GS1Composite;2D matrix code: Aztec Code, Data Matrix, QR Code, Micro QR Code,MaxiCode, Han Xin Code; Postal: Intelligent Mail Barcode, Postal-4i, Australian Post, British Post, Canadian Post, Japanese Post,Netherlands (KIX) Post,Postnet, Planet Code; OCR option: OCR-A, OCR-B, E13B (MICR)
Function 1 1D Advanced Laser Scan Engine (Option 1)
Scan Accuracy 5mil
Rotate ±35°
Pitch Angle ±65°
Skew Tolerance ±50°
Ambient Light Sunlight: 10,000ft. Candles (107,640Lux)
Artificial light: 450ft. Candles (4,844Lux)
Scan Depth 15.2cm (4mil), 64.1cm (55mil)
Scan Frequency min.92/sec, model: 104, max.116 times (bi-directional)
Scan Width 47°/35°/10°
Laser Safety Grade Class II
Code Support UPC/EAN, POST, Code 128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSSI etc.
Function 2 1D Laser Scan Engine (Option 2)
Scan Accuracy 5mil
Rotate ±35°
Pitch Angle ±65°
Skew Tolerance ±50°
Ambient Light Immunity Sunlight: 10,000ft
Scan Depth 13.5cm (5mil), 91cm (55mil)
Scan Frequency 100±10/sec
Scan width 47°
Laser Power 1.7mw±0.2mw (Standard)
Code Support UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSSI etc.
Function 3 2D Advanced Image Scan Engine (Option 3)
Sensor Resolution 752(H)×480(V) Pixel Wide VGA
Rotate 360°
Pitch Angle ±60°
Skew Tolerance ±60°
VLD 655nm±10nm
LED 635nm±5nm
Ambient Light (Sunlight) 9000 ft. Candles (96,900Lux)
Optional Model:SR Offers the best range and performance on medium and low density 1D and 2D barcodes
Optional Model:DL Optimized for medium to high density bar codes as well as the bar codes found on driver’s licenses and other identification documents, ideal for border crossings as well as the healthcare and electronics industry
Optional Model:HD Optimal design special for ultrahigh density 1D and 2D bar code
Function 4 2D Image Scan Engine (Option 4)
Field of View Horizontal:41.4 ,Vertical:32.2
Sensor Resolution 838(H) x 640(V) Pixel Wide
Rotate 360°
Pitch Angle ±45°
Skew Tolerance ±65°
VLD 528nm±10nm
LED 617nm±10nm
Ambient Light (Sunlight) 0-100000 Lux
Code Support 1D CODE: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved2 of 5, Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post; 2D Stacked: PDF417, MicroPDF417, GS1Composite;2D matrix code: Aztec Code, Data Matrix, QR Code, Micro QR Code,MaxiCode, Han Xin Code; Postal: Intelligent Mail Barcode, Postal-4i, Australian Post, British Post, Canadian Post, Japanese Post,Netherlands (KIX) Post,Postnet, Planet Code; OCR option: OCR-A, OCR-B, E13B (MICR)
Function 5 RFID Read/write (HF)
Standards Support ISO15693, ISO14443A
Operating Frequency HF frequency band 13.56MHz
Reading Range 0~5cm (ISO15693), 0-4cm (ISO14443A)
Function 6 Camera
Maximum Resolution 2592*1944, 2048*1536, 1600*1200, 1024*768
Photo Function Auto-focus
Flashlight Support flashlight (support BSI)
Pixel 5.0 mega-pixel
Function 7 GPS Location information collection
Hot Start <2 seconds (Average)
Warm Start (autonomous) <35 seconds (Average)
Warm Start (with CGEE) 10 seconds (Typical)
Cold Start <35 seconds (Average)
Accuracy <5 meters

3.AUTOID® 6L-W WIRELESS DATA COMMUNICATIONS

Function 1 WLAN WIFI
Protocol IEEE 802.11b/g/n
Frequency Range Depends on different countries (regions), 2.4GHz to 2.5GHz in normal
Working Channel CH1 to CH14
Security OPEN, WEP, WPA-PSK (TKIP), WPA2-PSK (TKIP+AES) (MS-CHAP), TTLS(MS-CHAP) (CHAP), TTLSMD5, TTLS-PAP, PEAP-TLS, PEAP(MS-CHAP v2), WPA-AES, Support CCX v4 etc.
Output Power 802.11b /11Mbps: 15 dBm ± 1.5 dB @ EVM ≤ -9dB
802.11g /54Mbps: 15 dBm ± 1.5 dB @ EVM ≤-25dB
802.11n /72Mbps: 15 dBm ± 1.5 dB @ EVM ≤-28dB
Sensitivity 802.11b @8% PER:
– 1Mbps PER @ -93 dBm, typical
802.11g @10% PER:
– 6Mbps PER @ -89 dBm, typical
802.11n @10% PER:
– MCS=0 PER @ -86 dBm, typical
Transmission Distance >150 meters (Industrial grade AP, Open regions)
Data Rate 802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps (20MHz, Long GI, 800ns)
802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65,72.2Mbps (20MHz, short GI, 400ns)
Antenna Internal single antenna
Function 2 WPAN Bluetooth
Standard Bluetooth 2.1 (EDR)
Power Class 2
Distance >20 meters (Industrial grade Bluetooth adapter)

4.AUTOID® 6L-W THE THIRD PARTY APPLICATION SUPPORT

System Software SEUIC’s SDK
System Programming Environment Visual Studio 2008 (Support .NET CF 3.5)

5.AUTOID® 6L-W PERIPHERALS AND ACCESSORIES

Standard Accessories Universal Adapter×1, USB Cable×1, Touch Pen×1, Hand Belt×1, battery×1
Optional Accessories Single Slot Battery Charger, Four Slot Battery Charger, Auto Adapter, Single Slot Charging Dock, Single Slot Charging Dock (Include Ethernet interface), handle, etc.
