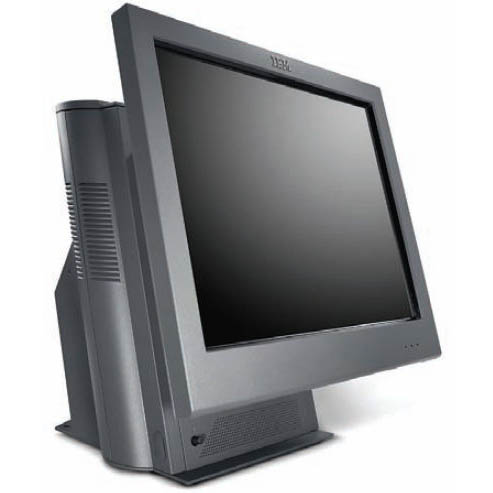

SurePOS 500 Series

SurePOS 500 with advanced touchscreen technology provides the ultimate retail-optimized point-of-sale tools to provide powerful functions to energize the customer experience.

Category:

Features

Feature Benefits
Sleek, slim design Enhances your store image

Fits in smaller checkout spaces
Industry leading infrared touch screen Fixed optical alignment never needs recalibration

Brighter screen, higher contrast and reduced glare

Maintains high accuracy and speed

Accepts a wide variety of input devices

Adjustable touch sensitivity

Totally sealed screen resists damage from spills
More optional peripherals

6.5″ VGA LCD customer display

Biometric fingerprint reader

 Meets high customer expectations for interactive information, fast and accurate service, expanded checkout options and improved security
USB, Serial and Express Card connectivity Easy to connect peripherals, RFID technology and wireless communications

Powered USB ports eliminate external power bricks

Standard and powered RS-232 ports support current and legacy POS peripherals

Use of third party Express Card expands POS placements
System-matched peripherals Designed to work with and color match the Toshiba SurePOS™ family of products

Helps reduce the risk of integrating components from multiple vendors
Deep sleep automation The system is in a low power mode and conserving almost as much energy as in the off state. Unlike powering down, deep sleep is much faster and more reliable to get your system up and running when it is needed again
Highly efficient power supply and energy-saving Intel processor Significantly lowers power consumption
100% recyclable packaging with inserts made from
100% recycled material		 Helps reduce landfill waste, disposal costs and environmental impact
Toshiba Remote Management Agent Toshiba Light-Path Management Makes systems easy to manage and service with remote management, monitoring and visual indicators that helps avoid problems and reduce costs and downtime
Tool free design Helps reduce costly service fees and downtime
Security innovations

Physical security (optional)

Biometric fingerprint reader (optional)

 Helps manage risk and fortify security. Access to serviceable parts can be restricted in high risk areas
Toshiba Retail Hardened Helps systems withstand severe thermal and humidity thresholds, spills, extensive vibration, power fluctuations and radio interference

Ensures reliable operation in demanding environments
Intel processor choices from Celeron to Core i5 to help run the latest POS software Helps prepare retailers for advanced POS and point-of-service applications

Integrates new technologies as retailers’ needs change

Supports applications from authorized Toshiba Business Partners

Specifications

Toshiba SurePOS 500 Series Technical Requirements
Hardware Machine Type 4852
Product name SurePOS 500 Models 570 and 580
Screen 15″ IR Touchscreen
Processor† Intel Celeron G540 (570 models)
Intel Core i5-3550S (580 models)
Service Processor Toshiba Light-Path Management
Maximum Dimensions HxWxD In mm (inches) 382(15.0)×
359(14.13)×253(9.96)
Weight 12.3 kg (27 lbs)
System Memory‡ 2 GB DDR3 (570 models, up to 8 GB available)
4 GB DDR3 (570 models, up to 8 GB Available)
8 GB DDR3 (580 models, up to 16 GB available)§§
Video Memory§ Up to 256 MB via Intel DVMT driver
Storage

Standard : Choice of HDD or Solid State Drive (SSD)

Options : Available with SSD

 500GB SATA2 HDD (standard on 570 and 580 models)
64GB SSD (1x SSD or 2x SSD upgrade options available for 570 models)
128GB SSD (upgrade options available on 570 and 580 models
Expansion slots Express Card slot
Wireless Optional wireless dongle cover kit
Independent Dual Video Standard
USB ports 1× 24v, 1× 12v, 7× USB 2.0 (3× on front tablet)
RS-232 ports 3× std, 1× powered, MSR
RJ45 Ethernet 1× Gigabit
Audio Ports/Speaker Mic-in/line out & headphone, speakers
Cash Drawer Port 2
System management Toshiba Remote Management Agent (RMA); SMBIOS; Wake on LAN® (WOL); Pre-Boot Execution Environment (PXE)
Power management Deep sleep automation; APM; ACPI
Operating systems supported** Microsoft POSReady 2009 (570 Models only);
Microsoft POSReady 7;
Windows 7 Professional (For Embedded Systems);
Windows 7 Ultimate (For Embedded Systems);
SLEPOS 11 SP3 by year end (570 Models only);
Windows 8.1 Professional (570 Models only)
Windows® 10 IoT Enterprise 2015 LTSB for Retail or Thin Clients (570, 570D Models only via RPQ)
Drivers supported UPOS 1.14.1 or higher
Optional peripherals
PS/2 keyboard/mouse PS2 Keyboard/Mouse
Secondary Displays Toshiba TCx™ Display;
Toshiba SurePoint™ Solution (touch and non-touch); Integrated 6.5” VGA display; Integrated 2×20 display;
Distributed pole mounted 2×20 display;
All Points Addressable Character Graphics Display
Printers Toshiba SureMark™
single station, dual station, and fiscal printers
Keyboards Modular CANPOS keyboards (includes 32 programmable keys) w/optional keylock and pointing device
Cash drawers Toshiba full size and compact cash drawer
Integration trays Toshiba Retail Integration Tray
MSR 3-Track; JUCC
Fingerprint reader Biometric fingerprint reader (Toshiba offering provided with HD coating)
Services
Limited warranty†† For warranty terms and country coverage, please refer to the Toshiba Statement of Limited Warranty at: http://www.toshibacommerce.com/support/limitedwarranty
Technical support 24×7 Web Support during warranty period. 24×7 Phone support (check geography availability)
Service Availability‡‡ Up to seven years following withdrawal from market
